Festo
8141740

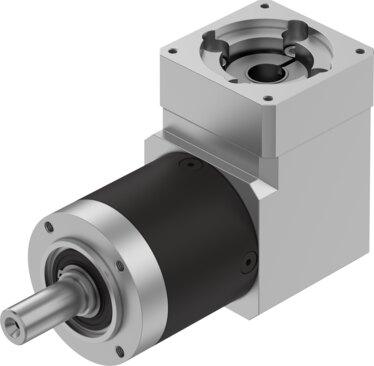

Gear unit EMGA-60-A-G20-60P
The Festo part number 8141740 is an industrial miter gear component featuring a 20:1 gear ratio, a 60 mm gearbox and motor flange size, and an IP54 degree of protection. This unit delivers a continuous output torque of 44 Nm, a maximum output torque of 70 Nm, a maximum actuator speed of 13000 rpm, and a maximum efficiency of 92 percent while operating within a temperature range of -25 °C to 90 °C. The assembly weighs 1900 g, incorporates a 0.256 kgcm² gearbox mass moment of inertia, 2 Nm/arcmin torsional rigidity, and 0.3 degree torsional backlash, alongside permissible axial and radial shaft loads of 500 N and 400 N respectively. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this RoHS compliant component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141740
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141740.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 60 mm
- Torsional backlash
- 0.3 deg
- Gearbox type
- Miter gears
- Gear ratio
- 20:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 44 Nm
- Mass moment of inertia, gearbox
- 0.256 kgcm²
- Max. output torque
- 70 Nm
- Max. efficiency
- 92 %
- Torsional rigidity
- 2 Nm/arcmin
- Product weight
- 1900 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60G
- Gearbox interface, actuator
- 60P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141740. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
