Festo
8141742

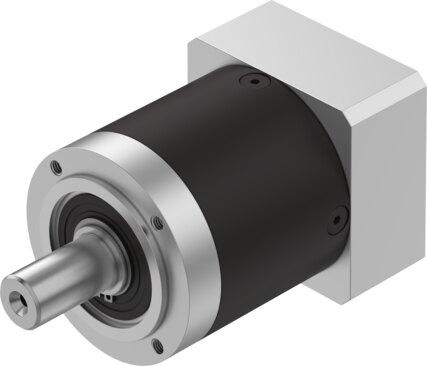

Gear unit EMGA-80-P-G12-EAS-80
This Festo industrial component features a planetary gear set with an 80 mm gearbox and motor flange size, delivering a 12:1 gear ratio and a maximum efficiency of 97%. The unit provides a continuous output torque of 120 Nm, a maximum output torque of 240 Nm, and a maximum actuator speed of 7000 rpm while maintaining a torsional backlash of 0.15 deg. Weighing 2500 g with an IP54 degree of protection, the assembly supports a permissible axial shaft load of 1000 N, a permissible radial shaft load of 750 N, and an operating temperature range of -25 °C to 90 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141742
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141742.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 80 mm
- Torsional backlash
- 0.15 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 12:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 120 Nm
- Mass moment of inertia, gearbox
- 0.589 kgcm²
- Max. output torque
- 240 Nm
- Max. efficiency
- 97 %
- Torsional rigidity
- 10.2 Nm/arcmin
- Product weight
- 2500 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 80P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141742. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
