Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

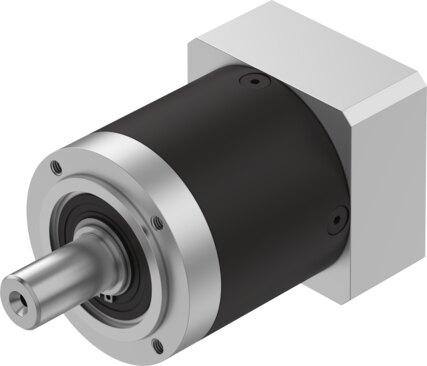

Reference imageConfirm configuration by manufacturer part number.
Festo
8141743
Gear unit EMGA-80-P-G20-EAS-80
The Festo 8141743 is an 80 mm planetary gear set featuring an 80 mm motor flange size, an 80 mm gearbox flange size, an 80G output shaft interface, and an 80P actuator interface. This component delivers a 20:1 gear ratio, a continuous output torque of 120 Nm, a maximum output torque of 240 Nm, and a maximum actuator speed of 7000 rpm with 0.15 degrees of torsional backlash. Built with RoHS-compliant materials and VDMA24364-B2-L LABS conformity, the unit achieves an IP54 protection rating, 96 percent maximum efficiency, 10.4 Nm/arcmin torsional rigidity, and operates within a temperature range of -25 °C to 90 °C while supporting a mass moment of inertia of 0.406 kgcm², a product weight of 2500 g, 1000 N of permissible axial shaft load, and 750 N of permissible radial shaft load. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141743
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141743.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 80 mm
- Torsional backlash
- 0.15 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 20:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 120 Nm
- Mass moment of inertia, gearbox
- 0.406 kgcm²
- Max. output torque
- 240 Nm
- Max. efficiency
- 96 %
- Torsional rigidity
- 10.4 Nm/arcmin
- Product weight
- 2500 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 80P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141743. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
