Festo
8141746

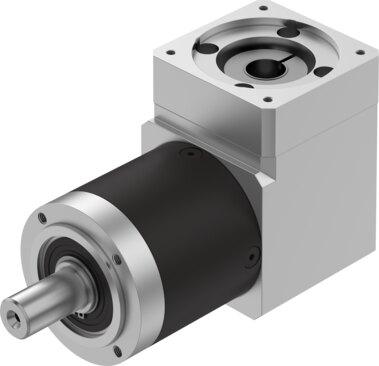

Gear unit EMGA-80-A-G20-80P
The Festo 8141746 industrial component features an 80 mm gearbox and motor flange size with a 20:1 miter gear ratio, delivering a continuous output torque of 120 Nm and a maximum output torque of 192 Nm. Operating within a temperature range of -25 °C to 90 °C, this IP54-rated unit accommodates a maximum actuator speed of 7000 rpm while maintaining a torsional backlash of 0.25 deg and a mass moment of inertia of 1.013 kgcm². The RoHS-compliant assembly weighs 5000 g and supports a maximum efficiency of 93 %, a torsional rigidity of 5.1 Nm/arcmin, and permissible axial and radial shaft loads of 1000 N and 750 N, respectively. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141746
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141746.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 80 mm
- Torsional backlash
- 0.25 deg
- Gearbox type
- Miter gears
- Gear ratio
- 20:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 120 Nm
- Mass moment of inertia, gearbox
- 1.013 kgcm²
- Max. output torque
- 192 Nm
- Max. efficiency
- 93 %
- Torsional rigidity
- 5.1 Nm/arcmin
- Product weight
- 5000 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 80P
- Note on materials
- RoHS compliant
