Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

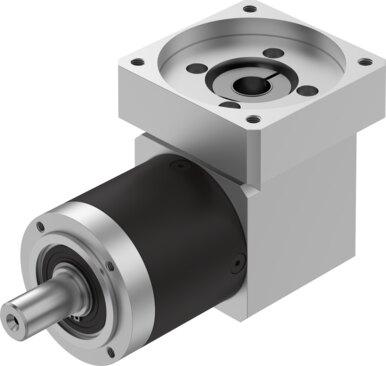

Reference imageConfirm configuration by manufacturer part number.
Festo
8141749
Gear unit EMGA-80-A-G20-100A
The Festo 8141749 is an industrial miter gear component featuring an 80 mm gearbox flange size, a 100 mm motor flange size, and a 20:1 gear ratio designed to handle a continuous output torque of 120 Nm and a maximum output torque of 240 Nm. Built with an IP54 degree of protection, a 0.25 deg torsional backlash, a 5.1 Nm/arcmin torsional rigidity, and an operating temperature range of -25 °C to 90 °C, this RoHS-compliant unit accommodates a maximum actuator speed of 7000 rpm and a max efficiency of 93%. It weighs 5100 g with a mass moment of inertia of 1.013 kgcm², an 80G output shaft interface, a 100A actuator interface, VDMA24364-B2-L LABS conformity, and permissible shaft loads of 1000 N axial and 750 N radial. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141749
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141749.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.25 deg
- Gearbox type
- Miter gears
- Gear ratio
- 20:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 120 Nm
- Mass moment of inertia, gearbox
- 1.013 kgcm²
- Max. output torque
- 240 Nm
- Max. efficiency
- 93 %
- Torsional rigidity
- 5.1 Nm/arcmin
- Product weight
- 5100 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141749. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
