Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

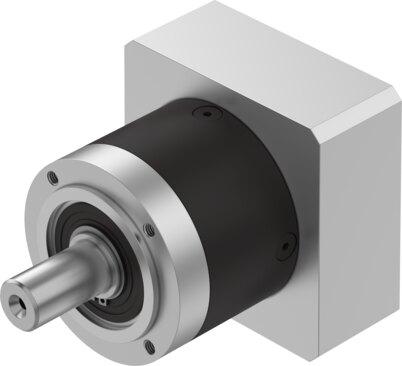

Reference imageConfirm configuration by manufacturer part number.
Festo
8141750
Gear unit EMGA-80-P-G8-SAS-100
The Festo 8141750 industrial component is a planetary gear set featuring an 8:1 gear ratio, an 80 mm gearbox flange size, and a 100 mm motor flange size with an 80G output shaft interface and a 100A actuator interface. It achieves a continuous output torque of 50 Nm, a maximum output torque of 80 Nm, a torsional backlash of 0.12 degrees, a torsional rigidity of 8.4 Nm/arcmin, and a maximum efficiency of 97 percent while supporting a maximum actuator speed of 7000 rpm. Weighing 2300 g with a gearbox mass moment of inertia of 0.37 kgcm², this RoHS compliant unit operates within a temperature range of -25 °C to 90 °C, provides an IP54 degree of protection, conforms to VDMA24364-B2-L LABS standards, and permits an axial shaft load of 1000 N alongside a radial shaft load of 750 N. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141750
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141750.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 8:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 50 Nm
- Mass moment of inertia, gearbox
- 0.37 kgcm²
- Max. output torque
- 80 Nm
- Max. efficiency
- 97 %
- Torsional rigidity
- 8.4 Nm/arcmin
- Product weight
- 2300 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141750. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
