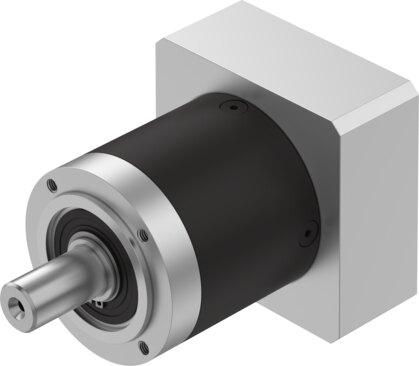

Reference imageConfirm configuration by manufacturer part number.
Festo
8141751
Gear unit EMGA-80-P-G12-SAS-100
The Festo part number 8141751 is an industrial component featuring a planetary gear set with a 12:1 gear ratio, an 80 mm gearbox flange size, and a 100 mm motor flange size. This unit delivers a continuous output torque of 120 Nm, a maximum output torque of 192 Nm, and a maximum actuator speed of 7000 rpm while maintaining a maximum efficiency of 96% and a torsional backlash of 0.15 degrees. Constructed with an IP54 degree of protection, a product weight of 2800 g, and RoHS compliance, it operates within a temperature range of -25 °C to 90 °C and conforms to VDMA24364-B2-L LABS standards. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141751
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141751.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.15 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 12:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 120 Nm
- Mass moment of inertia, gearbox
- 0.589 kgcm²
- Max. output torque
- 192 Nm
- Max. efficiency
- 96 %
- Torsional rigidity
- 10.2 Nm/arcmin
- Product weight
- 2800 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141751. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
