Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

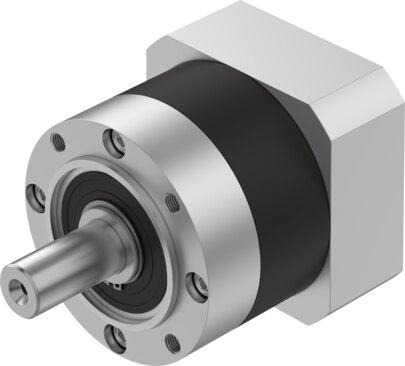

Reference imageConfirm configuration by manufacturer part number.
Festo
8141753
Gear unit EMGA-120-P-G8-SAS-100
The Festo part number 8141753 is an industrial component featuring a planetary gear set with a gear ratio of 8:1, a 120 mm gearbox flange size, and a 100 mm motor flange size. It delivers a continuous output torque of 120 Nm, a maximum output torque of 192 Nm, and operates at a maximum actuator speed of 6500 rpm with a torsional backlash of 0.12 deg. Built with an IP54 degree of protection and VDMA24364-B2-L LABS conformity, this RoHS-compliant unit weighs 6000 g and operates within a temperature range of -25 °C to 90 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141753
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141753.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 120 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 8:1
- Max. actuator speed
- 6500 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 120 Nm
- Mass moment of inertia, gearbox
- 1.431 kgcm²
- Max. output torque
- 192 Nm
- Max. efficiency
- 97 %
- Torsional rigidity
- 18 Nm/arcmin
- Product weight
- 6000 g
- Permissible axial shaft load
- 2500 N
- Permissible radial shaft load
- 1750 N
- Gearbox interface, output shaft
- 120G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141753. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
