Festo
8141762

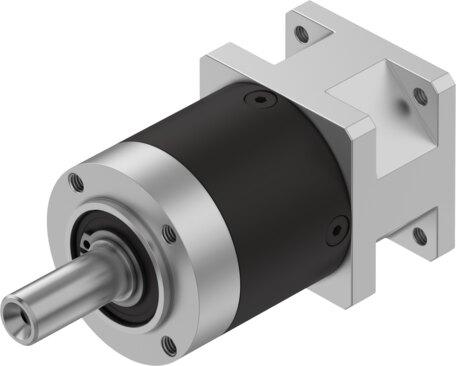

Gear unit EMGA-40-P-G8-SST-42
Engineered with a 40 mm gearbox flange size and a 42 mm motor flange size, this Festo 8141762 industrial component utilizes a planetary gear set with an 8:1 gear ratio to deliver a continuous output torque of 6 Nm and a maximum output torque of 10 Nm. The unit features an IP54 degree of protection, a torsional backlash of 0.25 deg, a mass moment of inertia of 0.015 kgcm², a torsional rigidity of 0.8 Nm/arcmin, and operates within a temperature range of -25 °C to 90 °C while achieving a maximum actuator speed of 18000 rpm and a maximum efficiency of 96%. Weighing 400 g with RoHS-compliant materials and VDMA24364-B2-L LABS conformity, the assembly incorporates a 40G output shaft gearbox interface and a 42A actuator interface. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141762
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141762.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 40 mm
- Motor ange size
- 42 mm
- Torsional backlash
- 0.25 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 8:1
- Max. actuator speed
- 18000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 6 Nm
- Mass moment of inertia, gearbox
- 0.015 kgcm²
- Max. output torque
- 10 Nm
- Max. efficiency
- 96 %
- Torsional rigidity
- 0.8 Nm/arcmin
- Product weight
- 400 g
- Gearbox interface, output shaft
- 40G
- Gearbox interface, actuator
- 42A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141762. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
