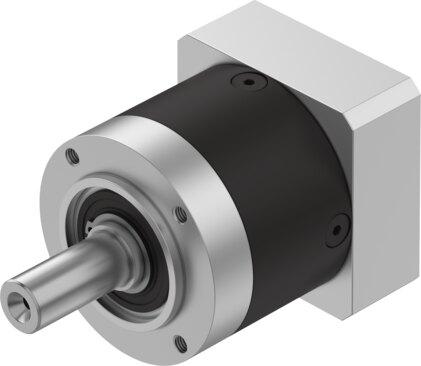

Reference imageConfirm configuration by manufacturer part number.
Festo
8141764
Gear unit EMGA-60-P-G8-SST-57
The Festo part number 8141764 is an industrial component featuring a planetary gear set with a 60 mm gearbox flange size, a 57 mm motor flange size, and an 8:1 gear ratio. This component delivers a continuous output torque of 18 Nm, a maximum output torque of 29 Nm, a maximum actuator speed of 13000 rpm, and a maximum efficiency of 97 percent while operating within a temperature range of -25 °C to 90 °C. Constructed with an IP54 degree of protection, a product weight of 900 g, and VDMA24364-B2-L LABS conformity, it supports a permissible axial shaft load of 500 N, a permissible radial shaft load of 400 N, and includes RoHS compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141764
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141764.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 57 mm
- Torsional backlash
- 0.17 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 8:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 18 Nm
- Mass moment of inertia, gearbox
- 0.067 kgcm²
- Max. output torque
- 29 Nm
- Max. efficiency
- 97 %
- Torsional rigidity
- 2.4 Nm/arcmin
- Product weight
- 900 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60G
- Gearbox interface, actuator
- 57A
- Note on materials
- RoHS compliant
