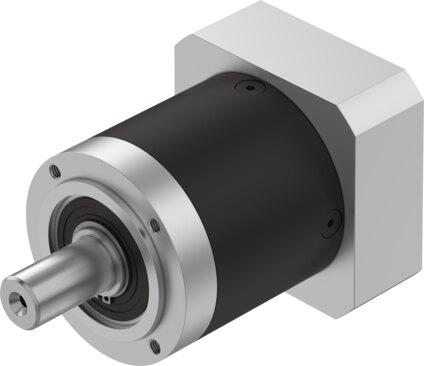

Reference imageConfirm configuration by manufacturer part number.
Festo
8141767
Gear unit EMGA-80-P-G12-SST-87
The Festo 8141767 is an industrial component featuring a planetary gear set with a 12:1 gear ratio, an 80 mm gearbox flange size, and an 87 mm motor flange size. It delivers a continuous output torque of 120 Nm, a maximum output torque of 192 Nm, and a maximum actuator speed of 7000 rpm while maintaining a torsional backlash of 0.15 deg and a maximum efficiency of 97%. Weighing 2600 g with a gearbox mass moment of inertia of 0.589 kgcm², this RoHS-compliant unit achieves an IP54 degree of protection and operates within a temperature range of -25 °C to 90 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141767
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141767.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 87 mm
- Torsional backlash
- 0.15 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 12:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 120 Nm
- Mass moment of inertia, gearbox
- 0.589 kgcm²
- Max. output torque
- 192 Nm
- Max. efficiency
- 97 %
- Torsional rigidity
- 10.4 Nm/arcmin
- Product weight
- 2600 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 87A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141767. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
