Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

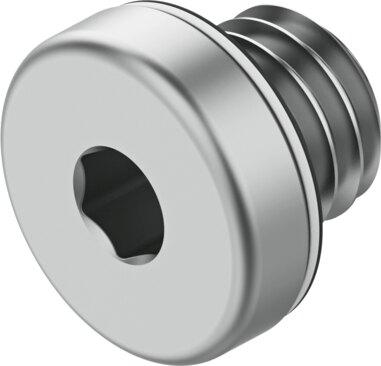

Reference imageConfirm configuration by manufacturer part number.
Festo
8142288
Blanking plug B-M5-F1A
The Festo part number 8142288 is an industrial component supplied in a pack size of 10, featuring a chemically nickel-plated steel blanking plug with an NBR and high-grade steel O-ring. This RoHS compliant component weighs 1 g, includes an M5 external thread for pneumatic connection 1, and utilizes an internal hex AF2.5 mounting type with a nominal tightening torque of 1.5 Nm at a -30% tolerance. It achieves ISO 14644-1 Class 6 cleanroom suitability, VDMA24364-B2-L LABS conformity, and is suitable for battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number 8142288, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8142288
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8142288.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Nominal tightening torque
- 1.5 Nm
- Tolerance for nominal tightening torque
- -30%
- Product weight
- 1 g
- Type of mounting
- Internal hex AF2.5
- Pneumatic connection 1
- External thread M5
- Note on materials
- RoHS compliant
- Blanking plug material
- Steel, chemically nickel-plated
- O-ring material
- High-grade steel | NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8142288. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
