Festo
8142289

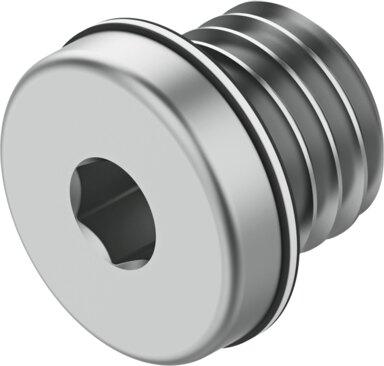

Blanking plug B-1/8-F1A
The Festo part number 8142289 is a pack of 10 chemically nickel-plated steel blanking plugs featuring an external G1/8 pneumatic connection and an internal hexagon AF 5 mounting type. Each 7 g component includes PA and TPE-U(PUR) O-rings, conforms to DIN 908 standards, and is rated for a nominal tightening torque of 5 Nm with a -20% tolerance. This RoHS compliant hardware achieves VDMA24364-B2-L LABS conformity, ISO 14644-1 cleanroom Class 6 suitability, and F1a classification for reduced Cu/Zn/Ni production of Li-ion batteries. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8142289
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8142289.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- Conforms to standard
- DIN 908
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Nominal tightening torque
- 5 Nm
- Tolerance for nominal tightening torque
- -20%
- Product weight
- 7 g
- Type of mounting
- Internal hexagon, AF 5
- Pneumatic connection 1
- External thread G1/8
- Note on materials
- RoHS compliant
- Blanking plug material
- Steel, chemically nickel-plated
- O-ring material
- PA | TPE-U(PUR)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8142289. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
