Festo
8142290

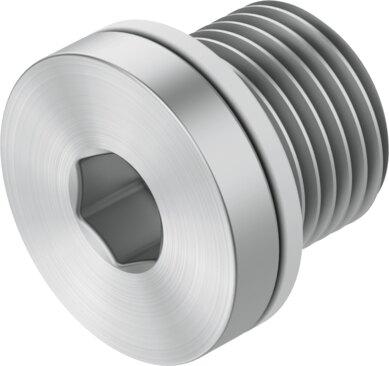

Blanking plug B-1/4-F1A
The Festo 8142290 is an industrial component blanking plug featuring an external thread G1/4 pneumatic connection 1 and conforming to DIN 908 standard. Fabricated from chemically nickel-plated steel with a PA and TPE-U(PUR) O-ring, this 15 g part utilizes an internal hexagon AF 6 mounting type with a nominal tightening torque of 8.5 Nm and a -20% tolerance. It achieves ISO 14644-1 Class 6 cleanroom suitability, VDMA24364-B2-L LABS conformity, and compatibility with Li-ion battery production requiring reduced Cu/Zn/Ni values (F1a), while maintaining RoHS compliance in a pack size of 10. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8142290
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8142290.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- Conforms to standard
- DIN 908
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Nominal tightening torque
- 8.5 Nm
- Tolerance for nominal tightening torque
- -20%
- Product weight
- 15 g
- Type of mounting
- Internal hexagon, AF 6
- Pneumatic connection 1
- External thread G1/4
- Note on materials
- RoHS compliant
- Blanking plug material
- Steel, chemically nickel-plated
- O-ring material
- PA | TPE-U(PUR)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8142290. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
