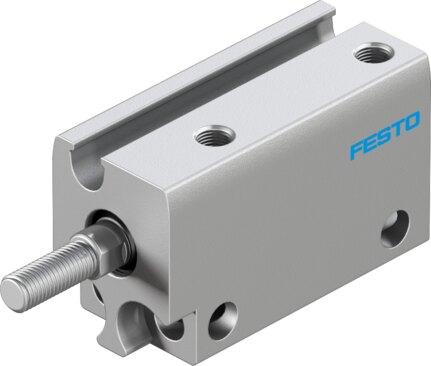

Name: Festo 8142516 Compact cylinder ADN-S-6-10-A-A-F1A
Brand: Festo

Compact cylinder ADN-S-6-10-A-A-F1A

The Festo part number 8142516 is a double-acting industrial component featuring a 6 mm piston diameter and a 10 mm stroke with external thread at the piston rod end. Operating at pressures from 2 bar to 8 bar (21.75 psi to 116 psi) using ISO 8573-1:2010 [7:4:4] compressed air, this unit delivers a theoretical force of 17 N advancing and 9.4 N retracting at 6 bar. Constructed for versatile installation in any mounting position, it provides position sensing via proximity switch, moderate corrosion resistance (CRC 2), ISO Class 5 cleanroom suitability, and suitability for the production of lithium-ion batteries with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8142516
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8142516.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm
Piston diameter: 6 mm
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: External thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Recommended for production facilities for the manufacture of lithium- | ion batteries | Piston rod at one end
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 21.75 psi...116 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.006 J
Theoretical force at 6 bar, retracting: 9.4 N
Theoretical force at 6 bar, advancing: 17 N
Moving mass: 2.4 g
Product weight: 13.6 g
Type of mounting: With through-hole
Pneumatic connection: M3
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy
Material of dynamic seals: NBR | TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8142516. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
