Festo
8142592

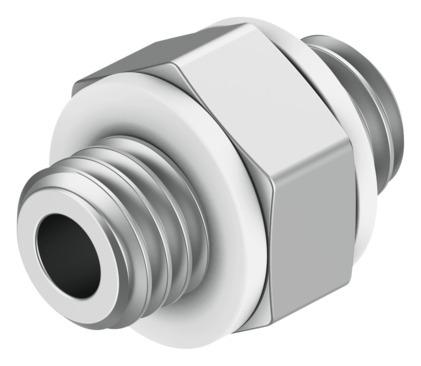

Double nipple NPFC-DS-M5-M5-M
This Festo industrial component, part number 8142592, is a nickel-plated brass threaded fitting featuring M5 pneumatic connections on both ports with a nominal tightening torque of 1.78 Nm at a ±20% tolerance. Designed with PVC seals and weighing 2.55 g, the unit operates within a pressure range of -0.95 bar to 10 bar and an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [-:-:-]. The RoHS-compliant fitting demonstrates a corrosion resistance class of 1 for low corrosion stress and VDMA24364-B2-L LABS conformity, and is supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8142592
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8142592.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque, pneumatic connection 1
- 1.78 Nm
- Nominal tightening torque, pneumatic connection 2
- 1.78 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 2.55 g
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M5
- Note on materials
- RoHS compliant
- Seals material
- PVC
