Festo
8142594

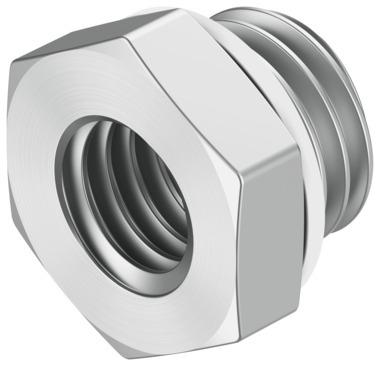

Reducing nipple NPFC-RS-G14-G18-MF
The Festo part number 8142594 is a nickel-plated brass threaded fitting packaged in a quantity of 10 units, featuring a G1/4 pneumatic connection 1 and a G1/8 pneumatic connection 2. This component operates within a pressure range of -0.95 bar to 10 bar and an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [-:-:-]. Built with PVC seals and adhering to CRC 1 low corrosion stress alongside RoHS compliance, each 11.11 g part requires a nominal tightening torque of 9.05 Nm with a ±20% tolerance on pneumatic connection 1. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8142594
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8142594.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque, pneumatic connection 1
- 9.05 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 11.11 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/8
- Note on materials
- RoHS compliant
- Seals material
- PVC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8142594. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
