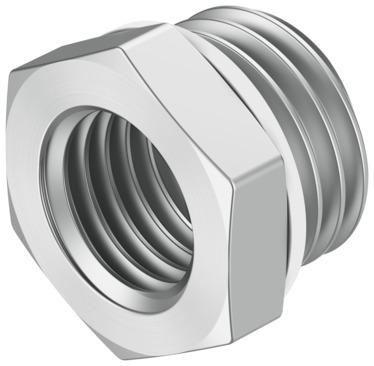

Reference imageConfirm configuration by manufacturer part number.
Festo
8142596
Reducing nipple NPFC-RS-G38-G14-MF
This Festo industrial component, part number 8142596, features nickel-plated brass threaded fittings, PVC seals, and a G3/8 pneumatic connection 1 alongside a G1/4 pneumatic connection 2, with a unit product weight of 13.42 g and a pack size of 10. The assembly operates within a pressure range of -0.95 bar to 10 bar and ambient temperatures from -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [-:-:-], while adhering to a corrosion resistance class of CRC 1, VDMA24364-B2-L LABS conformity, and RoHS material compliance. Pneumatic connection 1 requires a nominal tightening torque of 38.5 Nm with a tolerance of ±20%. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8142596
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8142596.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque, pneumatic connection 1
- 38.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 13.42 g
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G1/4
- Note on materials
- RoHS compliant
- Seals material
- PVC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8142596. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
