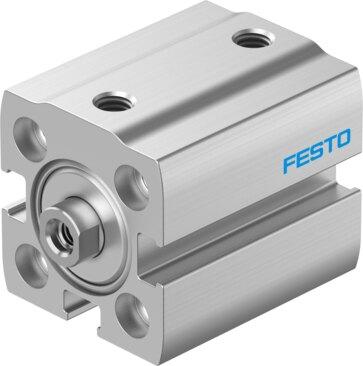

Name: Festo 8142734 Compact cylinder ADN-S-16-35-I-P-A-F1A
Brand: Festo

Compact cylinder ADN-S-16-35-I-P-A-F1A

The Festo 8142734 is a double-acting industrial component featuring a 16 mm piston diameter, a 35 mm stroke, and an internal thread at the piston rod end with a piston rod at one end. Operating on compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure range of 1 bar to 10 bar (0.1 MPa to 1 MPa, 14.5 psi to 145 psi), this unit delivers a theoretical force of 90 N retracting and 121 N advancing at 6 bar. It incorporates elastic cushioning rings or pads at both ends, position sensing via proximity switch, and offers a corrosion resistance class of CRC 2 with VDMA24364-B2-L LABS conformity. Certified with an ambient temperature range of 0 °C to 80 °C, ISO 14644-1 cleanroom suitability of Class 5, and F1a suitability for Li-ion battery production with reduced Cu/Zn/Ni values, it is recommended for lithium-ion battery manufacturing facilities. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8142734
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8142734.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 35 mm
Piston diameter: 16 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: Internal thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Recommended for production facilities for the manufacture of lithium- | ion batteries | Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: 0 °C...80 °C
Impact energy in the end positions: 0.15 J
Theoretical force at 6 bar, retracting: 90 N
Theoretical force at 6 bar, advancing: 121 N
Moving mass at 0 mm stroke: 11 g
Additional moving mass per 10 mm stroke: 4 g
Basic weight with 0 mm stroke: 42 g
Additional weight per 10 mm stroke: 18 g
Type of mounting: With through-hole | With internal thread
Pneumatic connection: M5
Note on materials: RoHS compliant
