Festo
8142736

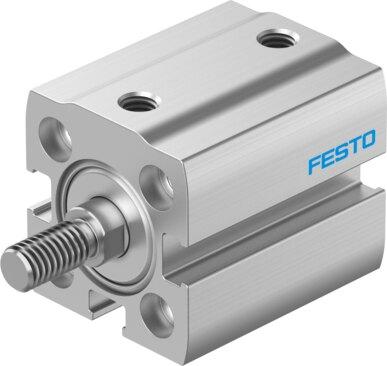

Compact cylinder ADN-S-16-10-A-P-A-F1A
The Festo 8142736 is a double-acting industrial component featuring a 16 mm piston diameter and a 10 mm stroke, utilizing elastic cushioning rings at both ends and a piston rod at one end with an external thread. Operating at pressures from 1 to 10 bar (14.5 to 145 psi) with compressed air per ISO 8573-1:2010 [7:4:4], it delivers theoretical forces of 121 N advancing and 90 N retracting at 6 bar while providing position sensing via proximity switch. Classified with CRC 2 moderate corrosion resistance, VDMA24364-B2-L LABS conformity, ISO 14644-1 Class 5 cleanroom suitability, and F1a reduced Cu/Zn/Ni values for lithium-ion battery production facilities, this part functions within an ambient temperature range of 0 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8142736
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8142736.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 16 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Recommended for production facilities for the manufacture of lithium- | ion batteries | Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- 0 °C...80 °C
- Impact energy in the end positions
- 0.15 J
- Theoretical force at 6 bar, retracting
- 90 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass at 0 mm stroke
- 11 g
- Additional moving mass per 10 mm stroke
- 4 g
- Basic weight with 0 mm stroke
- 42 g
- Additional weight per 10 mm stroke
- 18 g
- Type of mounting
- With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8142736. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
