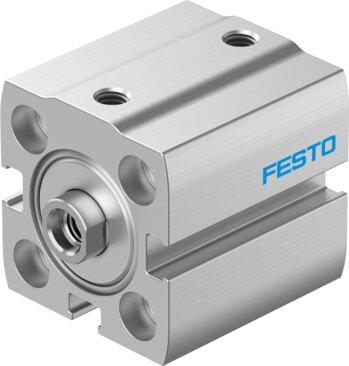

Name: Festo 8142756 Compact cylinder ADN-S-20-5-I-P-A-F1A
Brand: Festo

Compact cylinder ADN-S-20-5-I-P-A-F1A

The Festo 8142756 is a double-acting industrial component featuring a 20 mm piston diameter, a 5 mm stroke, and an internal thread piston rod at one end with elastic cushioning rings at both ends. Operating within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar / 8.7 psi to 145 psi) using compressed air per ISO 8573-1:2010 [7:4:4], this unit delivers a theoretical force of 141 N retracting and 188 N advancing at 6 bar. It offers ISO 14644-1 Class 5 cleanroom suitability, VDMA24364-B2-L LABS conformity, and is recommended for lithium-ion battery manufacturing facilities with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8142756
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8142756.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 5 mm
Piston diameter: 20 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: Internal thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Recommended for production facilities for the manufacture of lithium- | ion batteries | Piston rod at one end
Operating pressure: 0.06 MPa...1 MPa | 0.6 bar...10 bar | 8.7 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: 0 °C...80 °C
Impact energy in the end positions: 0.2 J
Theoretical force at 6 bar, retracting: 141 N
Theoretical force at 6 bar, advancing: 188 N
Moving mass at 0 mm stroke: 18 g
Additional moving mass per 10 mm stroke: 6 g
Basic weight with 0 mm stroke: 65 g
Additional weight per 10 mm stroke: 26 g
Type of mounting: With through-hole | With internal thread
Pneumatic connection: M5
Note on materials: RoHS compliant
