Festo
8142772

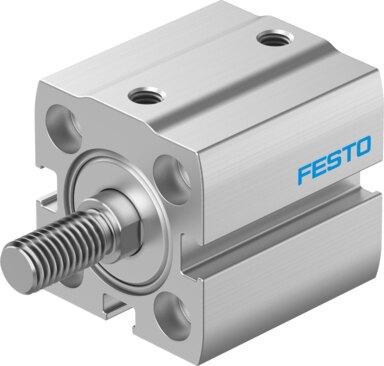

Compact cylinder ADN-S-20-35-A-P-A-F1A
The Festo industrial component, part number 8142772, is a double-acting piston and piston rod assembly featuring a 20 mm piston diameter and a 35 mm stroke with elastic cushioning rings at both ends. It operates within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar, 8.7 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 141 N retracting and 188 N advancing at 6 bar. Constructed for any mounting position with a piston rod at one end having an external thread, this unit offers position sensing via proximity switch, moderate corrosion resistance class 2, ISO 14644-1 Class 5 cleanroom suitability, and F1a suitability for the production of lithium-ion batteries. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8142772
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8142772.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 35 mm
- Piston diameter
- 20 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Recommended for production facilities for the manufacture of lithium- | ion batteries | Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar | 8.7 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- 0 °C...80 °C
- Impact energy in the end positions
- 0.2 J
- Theoretical force at 6 bar, retracting
- 141 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass at 0 mm stroke
- 18 g
- Additional moving mass per 10 mm stroke
- 6 g
- Basic weight with 0 mm stroke
- 65 g
- Additional weight per 10 mm stroke
- 26 g
- Type of mounting
- With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8142772. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
