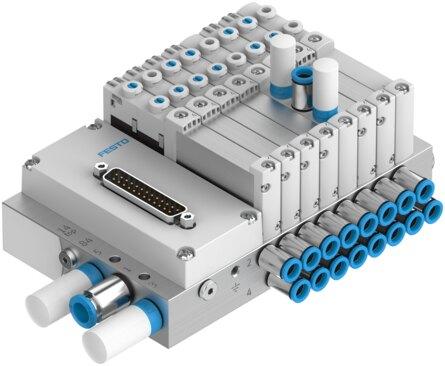

Name: Festo 8143237 Valve manifold VTUG-F1A
Brand: Festo

Valve manifold VTUG-F1A

The Festo industrial component, part number 8143237, features electrical actuation via AP interface, I-Port, IO-Link, and Multi-pin options, operating with compressed air meeting ISO 8573-1:2010 [7:4:4] standards. It functions within an operating pressure range of -0.9 bar to 10 bar and a temperature range of -5 °C to 60 °C, possessing an IP40 degree of protection and CRC 2 moderate corrosion resistance. This unit holds CE markings under the EU EMC and RoHS directives, complies with VDMA24364 Zone III LABS conformity, and achieves ISO 14644-1 Class 5 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8143237
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8143237.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: AP interface | I-Port | IO-Link® | Multi-pin
Electrical I/O system: No
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -5 °C...60 °C
Ambient temperature: -5 °C...60 °C
Storage temperature: -10 °C...60 °C
Degree of protection: IP40
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.15 MPa...0.8 MPa
Pilot pressure: 1.5 bar...8 bar
Operating pressure for valve manifold with internal pilot air supply: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Certication: RCM compliance mark | c UL us - recognized (OL)
Certicate issuing authority: UL MH19482
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8143237. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
