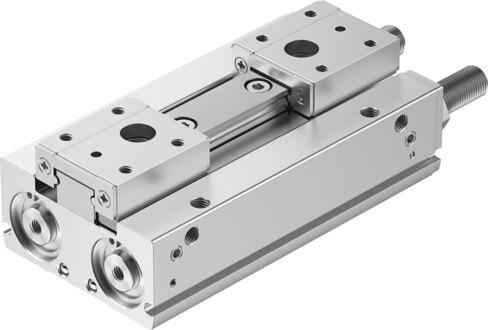

Reference imageConfirm configuration by manufacturer part number.
Festo
8143426
Parallel gripper HPPF-20-40-A-S
This Festo industrial component (Part Number: 8143426) is a double-acting pneumatic parallel gripper featuring two jaws, a size 20 designation, a 40 mm complete stroke, and a 20 mm stroke per gripper jaw. The structural design incorporates a flat mounting type for gripper fingers, a gear rack and pinion mechanism with positively driven motion sequence, a ball guide, and elastic cushioning rings or pads at both ends, yielding a repetition accuracy of 0.06 mm, zero max. gripper jaw angular play, and zero max. gripper jaw backlash. Operating at pressures from 1 bar to 7 bar (0.1 MPa to 0.7 MPa / 14.5 psi to 101.5 psi) with a maximum operating frequency of 1 Hz and a minimum opening time of 120 ms at 6 bar, the unit supports position sensing via proximity switch and excludes specific metals by mass as outlined in the manufacturer variants. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8143426
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8143426.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Complete stroke
- 40 mm
- Stroke per gripper jaw
- 20 mm
- Max. gripper jaw angular play ax, ay
- 0 deg
- Max. gripper jaw backlash Sz
- 0 mm
- Pneumatic gripper repetition accuracy
- 0.06 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Flat mounting type for gripper ngers | Gear rack/pinion | Positively driven motion sequence
- Guide
- Ball guide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.1 MPa...0.7 MPa | 1 bar...7 bar | 14.5 psi...101.5 psi
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 120 ms
- Min. closing time at 6 bar
- 110 ms
- Max. mass per external gripper nger
- 625 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8143426. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
