Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8144525

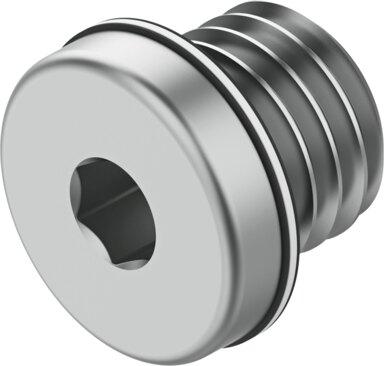

Blanking plug B-M7-F1A
Manufactured by Festo and supplied in a pack size of 10, part number 8144525 is a chemically nickel-plated steel blanking plug featuring an M7 external thread and an internal hexagon AF 3 mounting type. This component incorporates an NBR and high-grade steel O-ring, operates at a nominal tightening torque of 1.5 Nm with a ±15% tolerance, and weighs 2 g. It complies with RoHS regulations, conforms to VDMA24364-B2-L LABS conformity, meets ISO 14644-1 Class 6 cleanroom suitability, and is suitable for lithium-ion battery production with reduced Cu/Zn/Ni values (F1a). Request a formal quotation for this part by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8144525
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8144525.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Nominal tightening torque
- 1.5 Nm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 2 g
- Type of mounting
- Internal hexagon, AF 3
- Pneumatic connection 1
- External thread M7
- Note on materials
- RoHS compliant
- Blanking plug material
- Steel, chemically nickel-plated
- O-ring material
- High-grade steel | NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8144525. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
