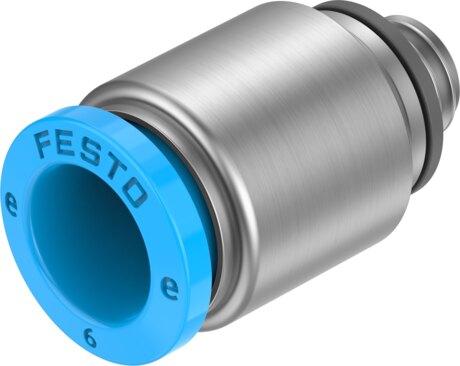

Name: Festo 8144596 Push-in fitting NPQE-DK-M5-Q6-F1A-P10
Brand: Festo

Push-in fitting NPQE-DK-M5-Q6-F1A-P10

The Festo part number 8144596 is a mini, straight-design industrial component featuring a 2.5 mm nominal width, an internal hex AF2.5 mounting type, and a push-pull structural design with a sealing ring on the screwed plug. Operating within a pressure range of -0.95 bar to 8 bar (-13.775 psi to 116 psi) and temperatures from -5 °C to 60 °C, this compressed air component supports lubricated operation and achieves ISO 14644-1 Class 4 cleanroom suitability alongside VDMA24364 Zone III LABS conformity. Weighing 3.36 g with a nominal tightening torque of 0.8 Nm (±5%), the pack size of 10 is suitable for battery production with reduced Cu/Zn/Ni values and excludes specified metals by mass. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8144596
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8144596.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Mini
Nominal width: 2.5 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Operating pressure for entire temperature range: -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Nominal tightening torque: 0.8 Nm
Tolerance for nominal tightening torque: ±5%
Product weight: 3.36 g
Type of mounting: Internal hex AF2.5
Pneumatic connection 1: External thread M5
Pneumatic connection 2: for pneumatic tubing outside diameter 6 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: high-alloy stainless steel
Material of threaded seal: NBR | high-alloy stainless steel
Releasing ring material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8144596. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
