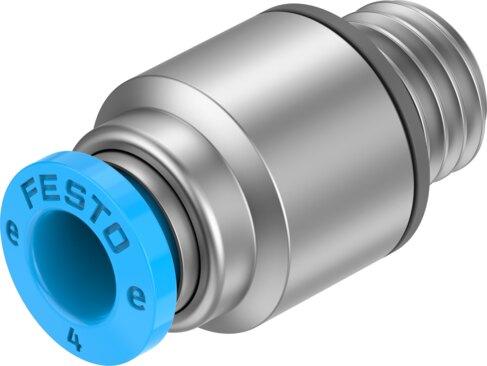

Reference imageConfirm configuration by manufacturer part number.
Festo
8144597
Push-in fitting NPQE-DK-M7-Q4-F1A-P10
The Festo 8144597 is a mini straight industrial component featuring a 3 mm nominal width and a push-pull structural design with a sealing ring on the screwed plug. This part operates within a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar / -13.775 psi to 116 psi) using compressed air as per ISO 8573-1:2010 [7:4:4], and is suitable for battery production with reduced Cu/Zn/Ni values (F1a) alongside cleanroom class 4 suitability according to ISO 14644-14. It mounts via an internal hexagon with AF 3 using a nominal tightening torque of 2 Nm with a ±5% tolerance, weighs 4.11 g, and is sold in a pack size of 10. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8144597
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8144597.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 3 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Nominal tightening torque
- 2 Nm
- Tolerance for nominal tightening torque
- ±5%
- Product weight
- 4.11 g
- Type of mounting
- Internal hexagon, AF 3
- Pneumatic connection 1
- External thread M7
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Material of threaded seal
- NBR | high-alloy stainless steel
- Releasing ring material
- POM
