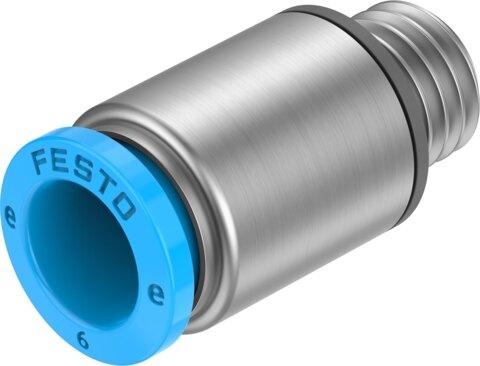

Name: Festo 8144598 Push-in fitting NPQE-DK-M7-Q6-F1A-P10
Brand: Festo

Push-in fitting NPQE-DK-M7-Q6-F1A-P10

The Festo 8144598 is a mini straight industrial component featuring a 4 mm nominal width, a push-pull structural design, and an internal hexagon mount with an AF 4 size requiring a 2 Nm nominal tightening torque with a ±5% tolerance. Operating within a pressure range of -0.095 MPa to 0.8 MPa and temperatures from -5 °C to 60 °C, this part utilizes a sealing ring on the screwed plug and is compatible with compressed air according to ISO 8573-1:2010 [7:4:4] under lubricated or unlubricated conditions. It holds a Corrosion Resistance Class 1 rating, VDMA24364 Zone III LABS conformity, ISO Class 4 cleanroom suitability, and is verified for Li-ion battery production with restricted Cu/Zn/Ni content. Submit the exact part number, quantity, and application requirements to receive an RFQ for this pack size of 10 components.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8144598
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8144598.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Mini
Nominal width: 4 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Operating pressure for entire temperature range: -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Nominal tightening torque: 2 Nm
Tolerance for nominal tightening torque: ±5%
Product weight: 4.02 g
Type of mounting: Internal hexagon, AF 4
Pneumatic connection 1: External thread M7
Pneumatic connection 2: for pneumatic tubing outside diameter 6 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: high-alloy stainless steel
Material of threaded seal: NBR | high-alloy stainless steel
Releasing ring material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8144598. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
