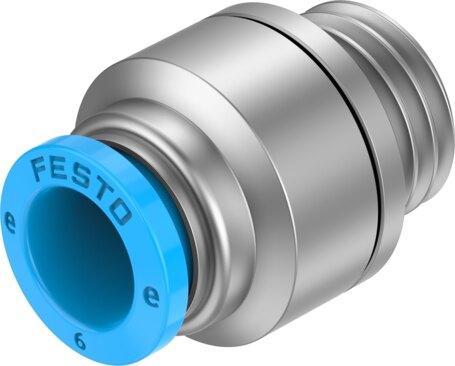

Reference imageConfirm configuration by manufacturer part number.
Festo
8144600
Push-in fitting NPQE-DK-G18-Q6-F1A-P10
The Festo 8144600 is a mini straight industrial component featuring a 4 mm nominal width, push-pull structural design, and an internal hexagon AF 4 mounting type with a sealing ring on the screwed plug. It operates within a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar, -13.775 psi to 116 psi) and an ambient temperature range of -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. This pack size of 10 exhibits a CRC of 1, VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 4 cleanroom suitability, and reduced Cu/Zn/Ni values making it suitable for battery production. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8144600
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8144600.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Nominal tightening torque
- 7 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 6.82 g
- Type of mounting
- Internal hexagon, AF 4
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Material of threaded seal
- Aluminum | TPEE
- Releasing ring material
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8144600. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
