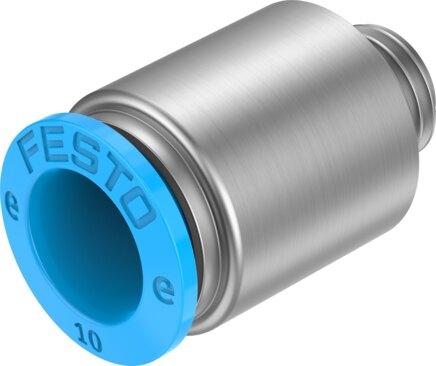

Name: Festo 8144602 Push-in fitting NPQE-DK-G18-Q10-F1A-P10
Brand: Festo

Push-in fitting NPQE-DK-G18-Q10-F1A-P10

The Festo 8144602 is a standard straight industrial component featuring a 5 mm nominal width and a push-pull structural design with a sealing ring on the screwed plug. Operating across a pressure range of -0.95 bar to 8 bar (-13.775 psi to 116 psi) and an ambient temperature range of -5 °C to 60 °C, this part utilizes compressed air as per ISO 8573-1:2010 [7:4:4] with lubricated operation possible. It possesses a VDMA24364 Zone III LABS conformity, a corrosion resistance class of 1, and suitability for battery production with reduced Cu/Zn/Ni values (F1a). Supplied in a pack size of 10 with a product weight of 15 g, the unit requires an internal hexagon (AF 5) mounting type and a nominal tightening torque of 7 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8144602
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8144602.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 5 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Operating pressure for entire temperature range: -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Nominal tightening torque: 7 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 15 g
Type of mounting: Internal hexagon, AF 5
Pneumatic connection 1: External thread G1/8
Pneumatic connection 2: for pneumatic tubing outside diameter 10 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: high-alloy stainless steel
Material of threaded seal: Aluminum | TPEE
Releasing ring material: POM
