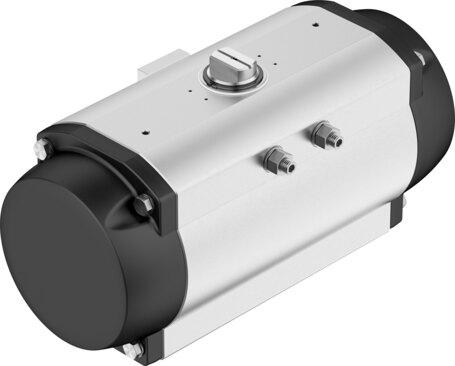

Name: Festo 8145413 Quarter turn actuator DFPD-2300-RP-90-RS45-F16-X-R3-C
Brand: Festo

Quarter turn actuator DFPD-2300-RP-90-RS45-F16-X-R3-C

The Festo 8145413 is a single-acting industrial component featuring a gear rack and pinion structural design with a size 2300 valve actuator and an F16 flange hole pattern. Operating within a pressure range of 2 bar to 8 bar and a nominal operating pressure of 4.5 bar, this safety device achieves a 90-degree swivel angle with an end-position adjusting range of -5 degrees to 5 degrees at both 0 degrees and the nominal swivel angle. The unit incorporates an ISO 5211 standard connection for valves, a VDI/VDE 3845 (NAMUR) compliant valve connection, a VDI/VDE 3845 Size AA 3 connection point for positioners and position sensors, a 48 mm shaft connection depth, and an arbitrary mounting position that closes to the right. Certified to ISO 13849 and IEC 61508, the safety function executes via spring force to switch the actuator to a defined safety switching position upon compressed air exhaust, supporting up to SIL 2 in low demand mode, SIL 1 in high demand mode, and SIL 3 in a redundant architecture with a 24 bar burst pressure. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8145413
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8145413.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 2300
Flange hole pattern: F16
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 48 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Single-acting
Structural design: Gear rack/pinion
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 3
Devices type according to VDMA 66413: Safety device
Safety function: The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched oﬀ and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.45 MPa | 4.5 bar | 65.25 psi
Maritime classication: See certicate
