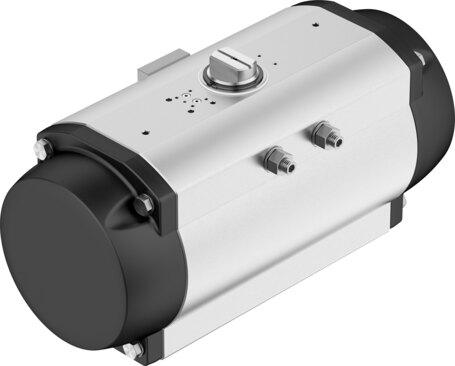

Name: Festo 8145415 Quarter turn actuator DFPD-2300-RP-90-RS35-F16-X-R3-C-VDE2
Brand: Festo

Quarter turn actuator DFPD-2300-RP-90-RS35-F16-X-R3-C-VDE2

The Festo part number 8145415 is a single-acting industrial component featuring a gear rack and pinion structural design with a valve actuator size of 2300, an F16 flange hole pattern, and a 90-degree swivel angle that closes to the right. Operating between 2 bar and 8 bar (29 psi to 116 psi) with a 24 bar burst pressure, this safety device includes a spring assembly that switches the actuator to a defined safety switching position when compressed air is switched off and the spring chamber is exhausted. It conforms to ISO 5211 for standard valve connections and VDI/VDE 3845 (NAMUR) for valve connections, while its connection point for positioners and position sensors conforms to VDI/VDE 3845 Size AA 3. Certified to ISO 13849 and IEC 61508 for safety functions, this component supports up to SIL 2 in low demand mode, up to SIL 1 in high demand mode, and up to SIL 3 in a redundant architecture, with any mounting position, a shaft connection depth of 48 mm, and an end-position adjusting range of -5 degrees to 5 degrees at both 0 degrees and the nominal swivel angle. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8145415
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8145415.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 2300
Flange hole pattern: F16
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 48 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Single-acting
Structural design: Gear rack/pinion
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 3
Devices type according to VDMA 66413: Safety device
Safety function: The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched oﬀ and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.35 MPa | 3.5 bar | 50.75 psi
Maritime classication: See certicate
