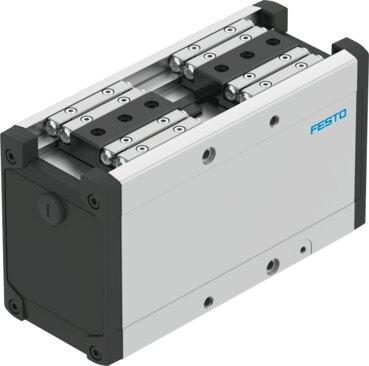

Reference imageConfirm configuration by manufacturer part number.
Festo
8146657
Parallel gripper HEPP-42-56-EC-B
The Festo 8146657 is an electrical parallel gripper featuring two gripper jaws, a size of 42, a complete stroke of 56 mm, and a stroke of 28 mm per gripper jaw. Utilizing a toothed belt structural design with a ball screw, roller guide, and brake, this component achieves a repetition accuracy of ±0.02 mm, a positioning speed of 50 mm/s per gripper finger, and a positioning acceleration of 1 m/s² with a max. gripper jaw clearance Sy of 0.35 mm. It operates in interpolating mode via fieldbus, includes an absolute single-turn magnetic rotor position sensor, a motor encoder for position sensing, an LED for ready status indication, and supports ESI file configuration for mounting in any position while excluding certain metals by mass. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8146657
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8146657.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 42
- Complete stroke
- 56 mm
- Stroke per gripper jaw
- 28 mm
- Max. Gripper jaw clearance Sy
- 0.35 mm
- Repetition accuracy in ± mm
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Controller operating mode
- Interpolating mode via eldbus
- Gripper function
- Parallel
- Structural design
- Toothed belt | Electric gripper | with brake | With ball screw
- Guide
- Roller guide
- Position sensing
- Motor encoder
- Conguration support
- ESI le
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Ready status indication
- LED
- Positioning speed per gripper nger
- 50 mm/s
- Positioning acceleration per gripper nger
- 1 m/s²
- Gripping speed per gripper nger
- 3 mm/s
- No. of MAC addresses
- 4
- Max. current consumption
- 4000 mA
- Max. load current consumption
- 3 A
- Logic max. current consumption
- 1 A
- Nominal operating voltage DC
- 24 V
- Nominal voltage, logic supply DC
- 24 V
