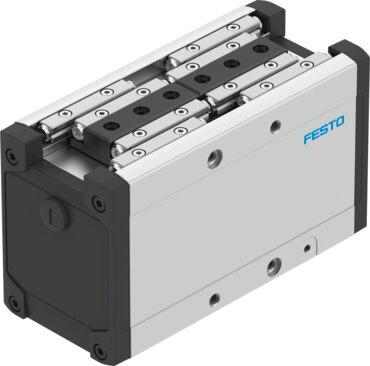

Reference imageConfirm configuration by manufacturer part number.
Festo
8146662
Parallel gripper HEPP-36-45-EC-B
The Festo part number 8146662 is an electrical parallel gripper featuring two jaws with a size of 36, a complete stroke of 45 mm, and a stroke of 22.5 mm per gripper jaw. Constructed with a toothed belt, ball screw, roller guide, and integrated brake, this component utilizes an absolute single-turn magnetic rotor position sensor and motor encoder to achieve a repetition accuracy of ±0.02 mm, a positioning speed of 40 mm/s per finger, and a positioning acceleration of 1 m/s². Controlled via interpolating mode through fieldbus with ESI file configuration support and an LED ready status indicator, the unit permits mounting in any position and restricts the use of specific mass constituents of copper, zinc, or nickel. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8146662
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8146662.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 36
- Complete stroke
- 45 mm
- Stroke per gripper jaw
- 22.5 mm
- Max. Gripper jaw clearance Sy
- 0.35 mm
- Repetition accuracy in ± mm
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Controller operating mode
- Interpolating mode via eldbus
- Gripper function
- Parallel
- Structural design
- Toothed belt | Electric gripper | with brake | With ball screw
- Guide
- Roller guide
- Position sensing
- Motor encoder
- Conguration support
- ESI le
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Ready status indication
- LED
- Positioning speed per gripper nger
- 40 mm/s
- Positioning acceleration per gripper nger
- 1 m/s²
- Gripping speed per gripper nger
- 3 mm/s
- No. of MAC addresses
- 4
- Max. current consumption
- 3000 mA
- Max. load current consumption
- 2 A
- Logic max. current consumption
- 1 A
- Nominal operating voltage DC
- 24 V
- Nominal voltage, logic supply DC
- 24 V
