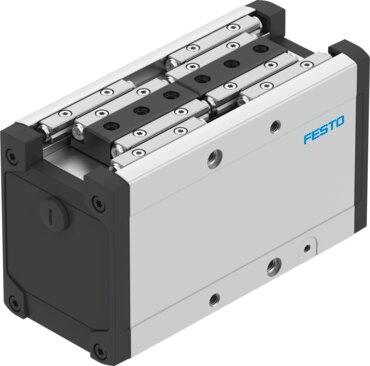

Reference imageConfirm configuration by manufacturer part number.
Festo
8146663
Parallel gripper HEPP-36-45-EC
The Festo 8146663 is an electrical parallel gripper featuring two gripper jaws, a size of 36, a complete stroke of 45 mm, and a stroke per gripper jaw of 22.5 mm. Utilizing a toothed belt, electric gripper, and ball screw structural design with a roller guide, this component achieves a repetition accuracy of ±0.02 mm, a positioning speed of 40 mm/s per gripper finger, and a positioning acceleration of 1 m/s². Operation relies on interpolating mode via fieldbus, supported by an ESI file, motor encoder position sensing, and an absolute single-turn magnetic rotor position sensor with an LED ready status indication. Metals with copper, zinc, or nickel by mass as the main constituent are excluded from use, subject to specific material exceptions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8146663
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8146663.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 36
- Complete stroke
- 45 mm
- Stroke per gripper jaw
- 22.5 mm
- Max. Gripper jaw clearance Sy
- 0.35 mm
- Repetition accuracy in ± mm
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Controller operating mode
- Interpolating mode via eldbus
- Gripper function
- Parallel
- Structural design
- Toothed belt | Electric gripper | With ball screw
- Guide
- Roller guide
- Position sensing
- Motor encoder
- Conguration support
- ESI le
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Ready status indication
- LED
- Positioning speed per gripper nger
- 40 mm/s
- Positioning acceleration per gripper nger
- 1 m/s²
- Gripping speed per gripper nger
- 3 mm/s
- No. of MAC addresses
- 4
- Max. current consumption
- 3000 mA
- Max. load current consumption
- 2 A
- Logic max. current consumption
- 1 A
- Nominal operating voltage DC
- 24 V
- Nominal voltage, logic supply DC
- 24 V
- Nominal voltage, load supply DC
- 24 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8146663. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
