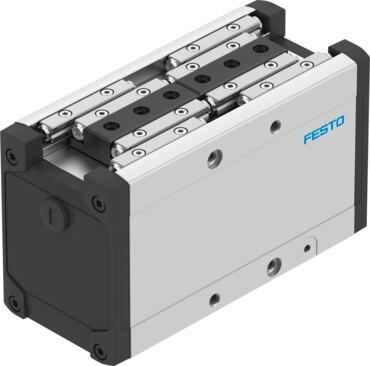

Reference imageConfirm configuration by manufacturer part number.
Festo
8146664
Parallel gripper HEPP-36-45-EP-B
The Festo 8146664 is an electrical parallel gripper featuring two gripper jaws, a size 36 designation, and a complete stroke of 45 mm with 22.5 mm per jaw. Built with a ball screw, toothed belt structural design, and roller guide, it achieves a repetition accuracy of ±0.02 mm and a max gripper jaw clearance Sy of 0.35 mm. Integrated features include an absolute single-turn magnetic rotor position sensor, motor encoder position sensing, an LED ready status indication, and an EDS file configuration support, operating via interpolating mode through fieldbus at a positioning speed of 40 mm/s and acceleration of 1 m/s² in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8146664
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8146664.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 36
- Complete stroke
- 45 mm
- Stroke per gripper jaw
- 22.5 mm
- Max. Gripper jaw clearance Sy
- 0.35 mm
- Repetition accuracy in ± mm
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Controller operating mode
- Interpolating mode via eldbus
- Gripper function
- Parallel
- Structural design
- Toothed belt | Electric gripper | with brake | With ball screw
- Guide
- Roller guide
- Position sensing
- Motor encoder
- Conguration support
- EDS le
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Ready status indication
- LED
- Positioning speed per gripper nger
- 40 mm/s
- Positioning acceleration per gripper nger
- 1 m/s²
- Gripping speed per gripper nger
- 3 mm/s
- No. of MAC addresses
- 4
- Max. current consumption
- 3000 mA
- Max. load current consumption
- 2 A
- Logic max. current consumption
- 1 A
- Nominal operating voltage DC
- 24 V
- Nominal voltage, logic supply DC
- 24 V
