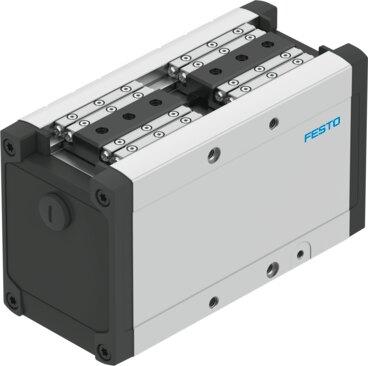

Name: Festo 8146667 Parallel gripper HEPP-28-30-EC-B
Brand: Festo

Parallel gripper HEPP-28-30-EC-B

The Festo part number 8146667 is an electrical parallel gripper featuring two gripper jaws, a size 28 designation, and a complete stroke of 30 mm with 15 mm of stroke per gripper jaw. This component utilizes a toothed belt and ball screw structural design with a roller guide, motor encoder, and absolute single-turn magnetic rotor position sensor to achieve a repetition accuracy of ±0.04 mm, a positioning speed of 40 mm/s per finger, and a positioning acceleration of 1 m/s². Operating via interpolating mode through fieldbus with ESI file configuration support and an LED ready status indicator, the unit permits mounting in any position while restricting the use of certain mass-constituent metals like copper and zinc. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this Festo industrial component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8146667
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8146667.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 28
Complete stroke: 30 mm
Stroke per gripper jaw: 15 mm
Max. Gripper jaw clearance Sy: 0.35 mm
Repetition accuracy in ± mm: 0.04 mm
Number of gripper jaws: 2
Actuator system: Electrical
Mounting position: Any
Controller operating mode: Interpolating mode via eldbus
Gripper function: Parallel
Structural design: Toothed belt | Electric gripper | with brake | With ball screw
Guide: Roller guide
Position sensing: Motor encoder
Conguration support: ESI le
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Ready status indication: LED
Positioning speed per gripper nger: 40 mm/s
Positioning acceleration per gripper nger: 1 m/s²
Gripping speed per gripper nger: 3 mm/s
No. of MAC addresses: 4
Max. current consumption: 3000 mA
Max. load current consumption: 2 A
Logic max. current consumption: 1 A
Nominal operating voltage DC: 24 V
Nominal voltage, logic supply DC: 24 V
