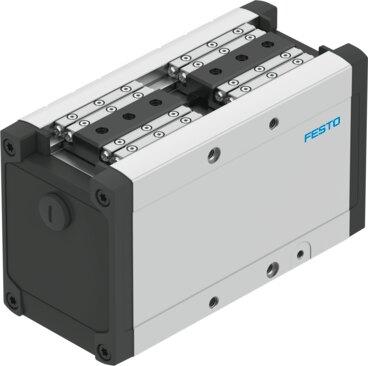

Reference imageConfirm configuration by manufacturer part number.
Festo
8146668
Parallel gripper HEPP-28-30-EC
The Festo 8146668 is an electrical parallel industrial component featuring two gripper jaws with a size 28 design, a complete stroke of 30 mm, and 15 mm of stroke per gripper jaw. Utilizing a structural design with a toothed belt, ball screw, and roller guide, this unit offers a repetition accuracy of ±0.04 mm, a positioning speed of 40 mm/s per gripper finger, and a positioning acceleration of 1 m/s². Control is handled via interpolating mode through fieldbus with configuration support provided by an ESI file, while position sensing and status are managed through a motor encoder, magnetic absolute single-turn encoder, and a ready status LED. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8146668
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8146668.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 28
- Complete stroke
- 30 mm
- Stroke per gripper jaw
- 15 mm
- Max. Gripper jaw clearance Sy
- 0.35 mm
- Repetition accuracy in ± mm
- 0.04 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Controller operating mode
- Interpolating mode via eldbus
- Gripper function
- Parallel
- Structural design
- Toothed belt | Electric gripper | With ball screw
- Guide
- Roller guide
- Position sensing
- Motor encoder
- Conguration support
- ESI le
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Ready status indication
- LED
- Positioning speed per gripper nger
- 40 mm/s
- Positioning acceleration per gripper nger
- 1 m/s²
- Gripping speed per gripper nger
- 3 mm/s
- No. of MAC addresses
- 4
- Max. current consumption
- 3000 mA
- Max. load current consumption
- 2 A
- Logic max. current consumption
- 1 A
- Nominal operating voltage DC
- 24 V
- Nominal voltage, logic supply DC
- 24 V
- Nominal voltage, load supply DC
- 24 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8146668. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
