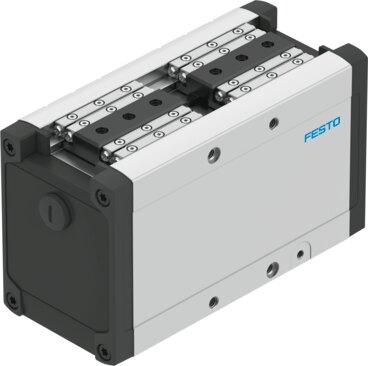

Name: Festo 8146669 Parallel gripper HEPP-28-30-EP-B
Brand: Festo

Parallel gripper HEPP-28-30-EP-B

The Festo 8146669 is an electrical parallel gripper featuring two gripper jaws, a size 28 designation, and a 30 mm complete stroke with 15 mm of stroke per jaw. Built with a roller guide, toothed belt, ball screw, and integrated brake, this component utilizes an absolute single-turn magnetic rotor position sensor and motor encoder for position sensing with a repetition accuracy of ±0.04 mm. Operation is supported through interpolating mode via fieldbus, an EDS file configuration, and an LED ready status indication, achieving a positioning speed of 40 mm/s and acceleration of 1 m/s² in any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8146669
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8146669.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 28
Complete stroke: 30 mm
Stroke per gripper jaw: 15 mm
Max. Gripper jaw clearance Sy: 0.35 mm
Repetition accuracy in ± mm: 0.04 mm
Number of gripper jaws: 2
Actuator system: Electrical
Mounting position: Any
Controller operating mode: Interpolating mode via eldbus
Gripper function: Parallel
Structural design: Toothed belt | Electric gripper | with brake | With ball screw
Guide: Roller guide
Position sensing: Motor encoder
Conguration support: EDS le
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Ready status indication: LED
Positioning speed per gripper nger: 40 mm/s
Positioning acceleration per gripper nger: 1 m/s²
Gripping speed per gripper nger: 3 mm/s
No. of MAC addresses: 4
Max. current consumption: 3000 mA
Max. load current consumption: 2 A
Logic max. current consumption: 1 A
Nominal operating voltage DC: 24 V
Nominal voltage, logic supply DC: 24 V

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8146669. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
