Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

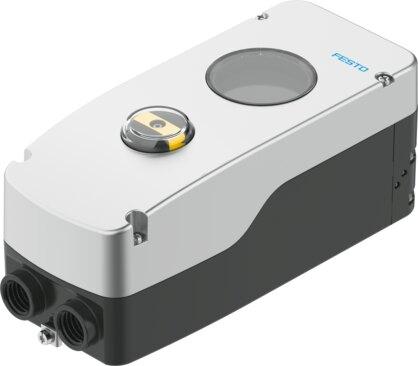

Reference imageConfirm configuration by manufacturer part number.
Festo
8148076
Positioner CMSH-
The Festo 8148076 is a digital, electropneumatic positioner supporting both single-acting and double-acting modes of operation with a cycle time of 20 ms and an operating pressure range of 0.14 MPa to 0.8 MPa (1.4 bar to 8 bar). It features an LCD display that is 90° rotatable via software, a sensing range of 0° to 115° using an external linear potentiometer, and configurable safety positions including closed pneumatic outlets or specific pneumatic outputs exhausted and pressurized. Designed for mounting in any position using accessories or in accordance with VDI/VDE 3845 and VDI/VDE 3847-2 standards, this component operates on compressed air as per ISO 8573-1:2010 [7:4:4] with a maximum particle size of 40 µm and an air performance of 270 l/min to 380 l/min at Δp = 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8148076
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8148076.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- digital, electropneumatic positioner
- Mode of operation
- Double-acting | Single-acting
- Design features
- Safety position - pneumatic outlets closed | Safety switch, pneumatic output 2 exhausted | Safety switch 4 pressurized
- Mounting position
- Any
- Type of mounting
- With accessories | As per VDI/VDE 3845 | As per VDI/VDE 3847-2
- Measuring principle of linear potentiometer
- Potentiometer | External
- Sensing range
- 0 deg...115 deg
- Display
- LCD display, via software 90° rotatable
- Cycle time
- 20 ms
- Nominal altitude of use above sea level
- <= 2000 m NHN
- Max. input power Pi
- See ATEX certicate | See IECEx certicate
- Max. input voltage Vi
- See ATEX certicate | See IECEx certicate
- Max. input current Ii
- See ATEX certicate | See IECEx certicate
- Effective internal capacitance Ci
- See ATEX certicate | See IECEx certicate
- Effective internal inductance Li
- See ATEX certicate | See IECEx certicate
- Overvoltage category
- II
- Operating pressure
- 0.14 MPa...0.8 MPa | 1.4 bar...8 bar | 20.3 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible | Maximum particle size 40 µm
- Air performance at Δp = 6 bar
- 270 l/min...380 l/min
- Note on air performance
- Depending on additional specic accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8148076. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
