8149443

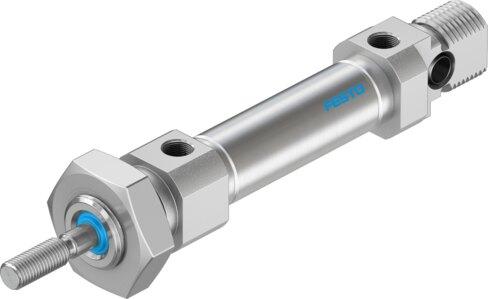

Name: Festo 8149443 Standards-based cylinder DSNU-10- -F1A-
Brand: Festo

Standards-based cylinder DSNU-10- -F1A-

The Festo 8149443 is a double-acting industrial component featuring a 10 mm piston diameter, an adjustable stroke ranging from 1 mm to 100 mm, and an M4 piston rod thread. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1.5 bar to 10 bar pressure range, it delivers a theoretical retracting force of 39.6 N at 6 bar utilizing elastic cushioning rings at both ends. Built for versatile integration with any mounting position and position sensing via proximity switch, this unit conforms to CETOP RP 52 P and ISO 6432 standards while meeting ISO 14644-1 Class 6 cleanroom and VDMA24364-B1/B2-L LABS conformity requirements. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8149443
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8149443.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 1 mm...100 mm
Piston diameter: 10 mm
Piston rod thread: M4
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Conforms to standard: CETOP RP 52 P | ISO 6432
Structural design: Piston | Piston rod | Cylinder barrel
Position sensing: Via proximity switch
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Stroke adjustment advancing | Weld spatter protection | Special thread on piston rod | Piston rod with external hexagon | Low friction for balancer applications | Swiveling rod eye mounting on the end cap | Low friction
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 0.05 J
Theoretical force at 6 bar, retracting: 39.6 N
Theoretical force at 6 bar, advancing: 47.1 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8149443. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
