Festo
8149448

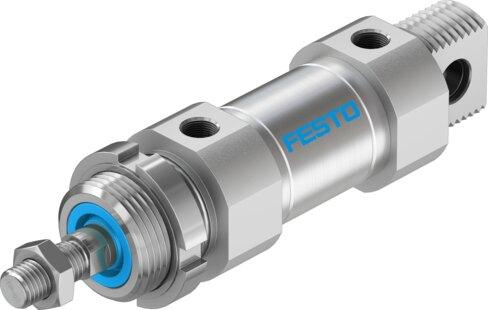

Round cylinder DSNU-32- -F1A-
The Festo 8149448 is a double-acting industrial component featuring a 32 mm piston diameter, an M10x1.25 piston rod thread, and an adjustable stroke length from 1 mm to 500 mm operating at pressures between 1 bar and 10 bar. This unit operates on compressed air meeting ISO 8573-1:2010 [7:4:4] standards with possible oil lubrication, and incorporates elastic cushioning rings, self-adjusting pneumatic end-position cushioning, and adjustable pneumatic cushioning at both ends within an ambient temperature range of -20 °C to 80 °C. It provides position sensing via proximity switch, achieves ISO 14644-1 Class 6 cleanroom suitability, and complies with VDMA24364-B1/B2-L LABS conformity for battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8149448
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8149448.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...500 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Stroke adjustment advancing | Weld spatter protection | Extended external thread piston rod | Internal thread on piston rod | Special thread on piston rod | Piston rod with external hexagon | Low friction for balancer applications | Swiveling rod eye mounting on the end cap | Low friction
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.4 J
- Cushioning length
- 14 mm
