Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8149581

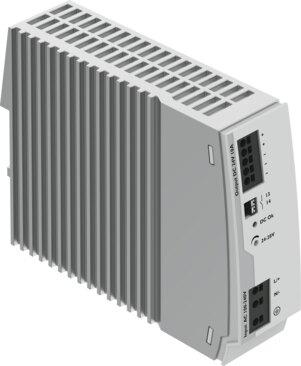

Power supply unit CACN-3A-1-10-G2
The Festo part number 8149581 is an industrial component featuring a single-phase primary supply with an AC input voltage range of 100 V to 240 V, a mains frequency of 45 Hz to 65 Hz, and an input current of 1.3 to 3.1 A. This DIN rail-mounted device delivers a nominal output voltage DC of 24 V at a nominal output current of 10 A, backed by a 20 ms power failure buffering capacity and open convection mounting. Certified as c UL us - Listed (OL) with CE marking per EU EMC and low voltage directives, the IP20-rated unit weighs 1168 g, measures 42 mm in width, 130 mm in height, and 160 mm in length, and adheres to VDMA24364 Zone III LABS conformity for storage temperatures between -40 °C and 85 °C and ambient operating temperatures from -25 °C to 70 °C at 95% relative air humidity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8149581
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8149581.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Height
- 130 mm
- Length
- 160 mm
- Mounting position
- Open convection
- Primary supply
- Single-phase
- Input current
- 1.3 - 3.1 A
- Nominal output voltage DC
- 24 V
- Nominal output current
- 10 A
- Input voltage range AC
- 100 V...240 V
- Power failure buffering
- 20 ms
- Mains frequency
- 45 Hz...65 Hz
- Certication
- c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -40 °C...85 °C
- Relative air humidity
- 95%
- Degree of protection
- IP20
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 1168 g
- Type of mounting
- With DIN rail
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8149581. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
