Name: Festo 8149582 Power supply unit CACN-3A-1-20-G2
Brand: Festo

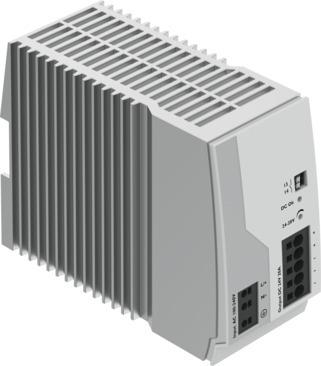

Power supply unit CACN-3A-1-20-G2

The Festo part number 8149582 is an industrial component featuring a single-phase primary supply with an input voltage range of 100 V to 240 V AC, an input current of 2.4 to 5.6 A, and a mains frequency of 45 Hz to 65 Hz. This DIN rail-mounted device delivers a nominal DC output voltage of 24 V at a nominal output current of 20 A, incorporating a power failure buffering time of 15 ms and open convection mounting. Built with an IP20 degree of protection, it measures 68 mm in width, 130 mm in height, 160 mm in length, and weighs 1669 g, operating within an ambient temperature range of -25 °C to 70 °C and storage temperatures from -40 °C to 85 °C at up to 95% relative air humidity. It conforms to VDMA24364 Zone III for LABS (PWIS) and carries c UL us - Listed (OL) certification alongside CE markings per the EU EMC and low voltage directives. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8149582
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8149582.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 68 mm
Height: 130 mm
Length: 160 mm
Mounting position: Open convection
Primary supply: Single-phase
Input current: 2.4 - 5.6 A
Nominal output voltage DC: 24 V
Nominal output current: 20 A
Input voltage range AC: 100 V...240 V
Power failure buﬀering: 15 ms
Mains frequency: 45 Hz...65 Hz
Certication: c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -40 °C...85 °C
Relative air humidity: 95%
Degree of protection: IP20
Ambient temperature: -25 °C...70 °C
Product weight: 1669 g
Type of mounting: With DIN rail
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8149582. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
