Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

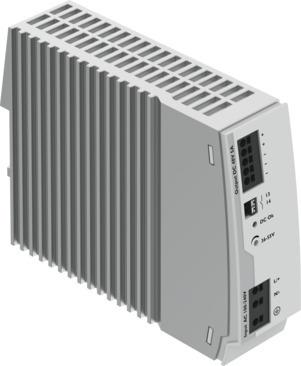

Reference imageConfirm configuration by manufacturer part number.
Festo
8149583
Power supply unit CACN-3A-7-5-G2
The Festo 8149583 is a single-phase industrial component featuring a width of 42 mm, a height of 130 mm, a length of 160 mm, and a product weight of 1120 g for DIN rail mounting with open convection positioning. It operates with a mains frequency of 45 Hz to 65 Hz, an AC input voltage range of 100 V to 240 V, an input current of 1.2 to 2.9 A, and provides a nominal DC output voltage of 48 V at a nominal output current of 5 A with 15 ms of power failure buffering. Certified as c UL us Listed (OL) with CE marking per the EU EMC and low voltage directives and VDMA24364 Zone III LABS conformity, it functions at ambient temperatures from -25 °C to 70 °C, storage temperatures from -40 °C to 85 °C, relative air humidity up to 95%, and features an IP20 degree of protection. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8149583
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8149583.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Height
- 130 mm
- Length
- 160 mm
- Mounting position
- Open convection
- Primary supply
- Single-phase
- Input current
- 1.2 - 2.9 A
- Nominal output voltage DC
- 48 V
- Nominal output current
- 5 A
- Input voltage range AC
- 100 V...240 V
- Power failure buffering
- 15 ms
- Mains frequency
- 45 Hz...65 Hz
- Certication
- c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -40 °C...85 °C
- Relative air humidity
- 95%
- Degree of protection
- IP20
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 1120 g
- Type of mounting
- With DIN rail
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8149583. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
