Festo
8149584

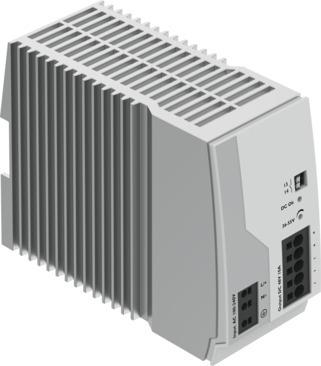

Power supply unit CACN-3A-7-10-G2
The Festo part number 8149584 is a single-phase industrial component featuring a nominal output voltage of 48 V DC, a nominal output current of 10 A, and an input voltage range of 100 V to 240 V AC at a mains frequency between 45 Hz and 65 Hz. Designed for DIN rail mounting with an open convection mounting position, this unit measures 68 mm in width, 130 mm in height, 160 mm in length, and weighs 1603 g with an IP20 degree of protection. It operates within an ambient temperature range of -25 °C to 70 °C, exhibits a power failure buffering time of 15 ms, and carries c UL us - Listed (OL) certification alongside CE marking as per EU EMC and low voltage directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8149584
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8149584.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 68 mm
- Height
- 130 mm
- Length
- 160 mm
- Mounting position
- Open convection
- Primary supply
- Single-phase
- Input current
- 2.4 - 5.6 A
- Nominal output voltage DC
- 48 V
- Nominal output current
- 10 A
- Input voltage range AC
- 100 V...240 V
- Power failure buffering
- 15 ms
- Mains frequency
- 45 Hz...65 Hz
- Certication
- c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -40 °C...85 °C
- Relative air humidity
- 95%
- Degree of protection
- IP20
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 1603 g
- Type of mounting
- With DIN rail
- Note on materials
- RoHS compliant
