Festo
8149585

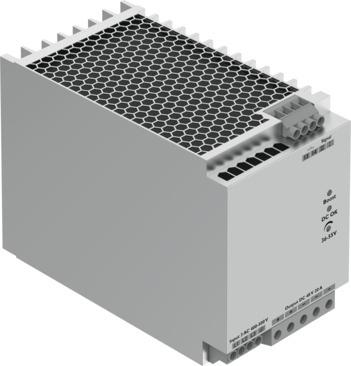

Power supply unit CACN-11A-7-20-G2
The Festo part number 8149585 is a three-phase industrial component featuring an input voltage range of 400 V to 500 V, an input current of 1.7 to 2.1 A, and a nominal output voltage of 48 V DC at 20 A. Weighing 2500 g with dimensions of 96 mm width, 130 mm height, and 179 mm length, this IP20-rated unit mounts via DIN rail in an open convection position and includes 25 ms of power failure buffering. It operates at ambient temperatures between -25 °C and 70 °C, carries c UL us-Listed (OL) certification along with CE markings per EU EMC and low voltage directives, and conforms to VDMA24364 Zone III LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8149585
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8149585.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 96 mm
- Height
- 130 mm
- Length
- 179 mm
- Mounting position
- Open convection
- Primary supply
- Three-phase
- Input current
- 1.7 - 2.1 A
- Nominal output voltage DC
- 48 V
- Nominal output current
- 20 A
- Input voltage range AC
- 400 V...500 V
- Power failure buffering
- 25 ms
- Mains frequency
- 45 Hz...65 Hz
- Certication
- c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -40 °C...85 °C
- Relative air humidity
- 95%
- Degree of protection
- IP20
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 2500 g
- Type of mounting
- With DIN rail
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8149585. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
