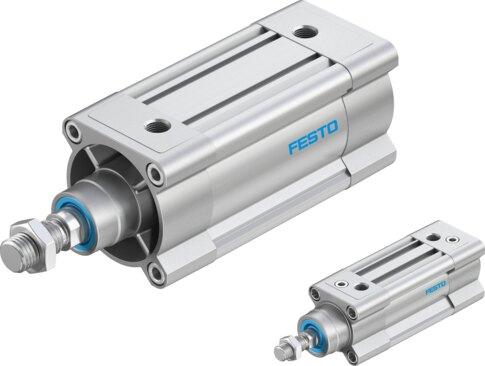

Reference imageConfirm configuration by manufacturer part number.
Festo
8150689
Standards-based cylinder DSBC-...-50- -F1A-
Engineered to ISO 15552 standards by Festo, part number 8150689 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke range from 1 mm to 2800 mm, and a structural profile barrel design utilizing a piston and piston rod. Operating at pressures between 0.04 MPa and 1.2 MPa (0.4 bar to 12 bar), it accommodates compressed air media according to ISO 8573-1:2010 [7:4:4] with optional oil lubrication, provides position sensing via proximity switches, and achieves Class 5 cleanroom suitability per ISO 14644-1. This unit offers a moderate corrosion resistance class (CRC 2), operates within ambient temperatures from -20 °C to 80 °C, and incorporates self-adjusting pneumatic end-position cushioning or elastic cushioning rings at both ends. Submit your exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150689
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150689.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5 | M10
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Stroke adjustment advancing | Weld spatter protection | Extended external thread piston rod | Piston rod with external hexagon | Low friction | Sensor slots on 3 prole sides | Additional PTFE piston guide
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
