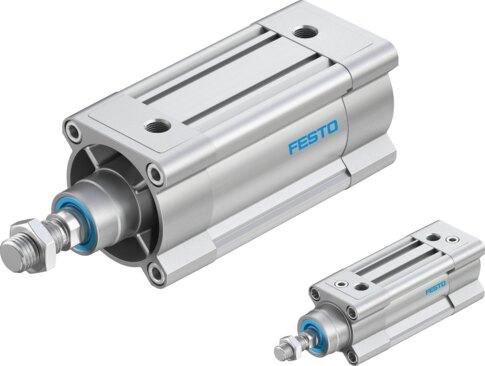

Reference imageConfirm configuration by manufacturer part number.
Festo
8150691
Standards-based cylinder DSBC-...-80- -F1A-
Engineered by Festo with an 80 mm piston diameter and a variable stroke ranging from 1 mm to 2800 mm, this double-acting industrial component conforms to ISO 15552 and operates between 0.4 bar and 12 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. The structural design features a piston, piston rod, and profile barrel with configurable pneumatic or elastic cushioning and position sensing via proximity switch. It offers a moderate corrosion resistance class of CRC 2, an ambient temperature range of -20 °C to 80 °C, and suitability for Li-ion battery production under reduced Cu/Zn/Ni values. Submit the exact part number 8150691, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150691
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150691.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5 | M12
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Stroke adjustment advancing | Weld spatter protection | Extended external thread piston rod | Piston rod with external hexagon | Low friction | Sensor slots on 3 prole sides | Additional PTFE piston guide
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.4 J...1.8 J
