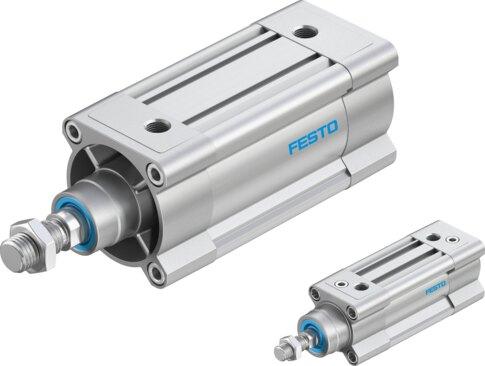

Reference imageConfirm configuration by manufacturer part number.
Festo
8150692
Standards-based cylinder DSBC-...-100- -F1A-
Manufactured by Festo under part number 8150692, this double-acting industrial component features a 100 mm piston diameter, an adjustable stroke ranging from 1 mm to 2800 mm, and conforms to ISO 15552 standards with a profile barrel structural design. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 0.04 MPa to 1.2 MPa pressure range, the unit incorporates pneumatic cushioning adjustable at both ends and position sensing via proximity switch. It offers moderate corrosion resistance (CRC 2) across an ambient temperature range of -20 °C to 80 °C and includes variants suitable for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150692
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150692.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5 | M12
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Stroke adjustment advancing | Weld spatter protection | Extended external thread piston rod | Piston rod with external hexagon | Low friction | Sensor slots on 3 prole sides | Additional PTFE piston guide
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2 J...2.5 J
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8150692. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
